Gripper loading system POLAR Autotrans

Gripper loading system POLAR Autotrans

takes the prepared cutting ream from a peripheral unit

POLAR's  gripper loading system Autotrans M takes the prepared cutting ream from a peripheral unit, e. g. a buffer table, automatic jogger or piling-board shelf. Via air tables, which optimize the conveying process by air cushions, the material is transported directly onto the high-speed cutter rear table where it is accurately aligned. For rear-table loading the optional retractable side gauge at the high-speed cutter is absolutely necessary. During the transport the grippers firmly hold the cutting ream and ensure that the edges of the reams remain precisely aligned.

The POLAR Autotrans M gripper loading system is positioned on free-standing supports and allows for the use of the Autoturn turning gripper (option).

Half-size
SRA3 up to
52 x 74 cm
Medium-size
up to
75 x 105 cm
Large-size
up to
126 x 164 cm
Component for
• high-speed cutter
POLAR N 115
POLAR N 137
POLAR N 155
POLAR N 176
• POLAR CuttingSystems

Configuring with

1 Option to

  • Intermediate stop with buffer space

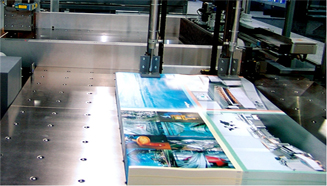

    Intermediate stop with buffer space - The distance between upstream components and the high-speed cutter is increased. This allows to buffer a completely prepared ream.
