High-speed cutter POLAR N 137 AT HD

High-speed cutter POLAR N 137

The basis for all highly-automated PACE systems

Configure your POLAR N 137 high-speed cutter with performance-enhancing options tailored to your own requirements.

POLAR high-speed cutter N 137 marks the entry level to the cutting of medium-size formats, such as III-b print products. Formats up to a diagonal of 1,370 mm can be conveniently turned on the high-speed cutter. When dealing with larger sizes the material being cut can only be turned on the front table.

By adding a gripper loading system, the high-speed cutter can be complemented to form a central component in a PACE system.

High-speed cutter N 137 PLUS:

The allrounder with 18.5“ color display and touch-screen operation. Suitable for all standard cutting jobs. Featuring automatic graphic programming to ensure a highly-automated process. Examples of equipment: Graphic operator guidance, with various language packages. Change-over measurement system (metric, inch or shaku). Configurable user interface, OptiKnife knife changing system and many other features.

High-speed cutter N 137 PRO HD:

The programmable high performance model with a capacitive 21.5'' Touch-Screen display and real image preview for high-end applications thanks to job specific programmable parameter, label and distortion correction as well as an extended range of options.

Our model N 137 AT HD is the most-efficient model of this type of high-speed cutter featuring automatic waste disposal during the cutting process.

High-speed cutter POLAR N 137
Cutting width 1370 mm
Feed depth 1450 mm
Clamp opening max. 165 mm
Depth of front table 730 mm
Dimensions width x depth D 2840 mm  x  W 2580 mm
Component for ..... Medium-size ( 75 x 105 • 89 x 126 cm)

Configuring with

25 Options to

  • Compucut®

    Compucut® - Transfer of prepress data to generate cutting programs externally > reduces set-up time to almost zero

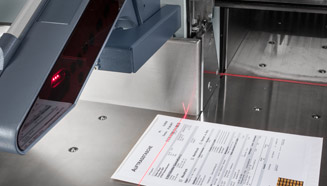

    Barcode

    Barcode - Enables automatic loading of the appropriate cutting program

    Process Visualization

    Process Visualization - Minimum proneness to errors through graphics that visually represent material handling.

  • Swivel backgauge

    Swivel backgauge - Easily ensures squareness by motorized backgauge adjustment

    Tilting backgauge

    Tilting backgauge - Easily corrects overcut / undercut by motorized backgauge adjustment

    Downholder in front of knife

    Downholder in front of knife - Prevents the cut products from getting mixed up and drifting away.

  • False clamp plate

    False clamp plate, 40 mm (cutting width: 50 mm) - Smaller labels, such as business cards can be cut without any loss of quality

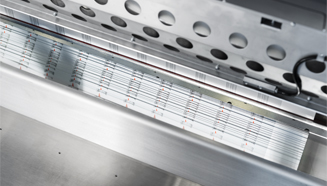

    Automatic waste removal - POLAR Autotrim

    Autotrim - Efficiency is increased by up to 40% through automatic waste removal

    Retractable small format guide

    Retractable small format guide - Prevents small labels from being stuck between the front and rear side gauges on the right

  • AirKnife

    AirKnife - Prevents statically charged cutting waste or plastic films from sticking on the knife

    AntiStickKnife

    AntiStickKnife - Special coating that prevents the adhesion of glues. > This increases the productivity by up to 30%.

    Movable rear table guard

    Movable rear table guard - Allows fast access to the knife from the rear for cleaning it

  • Downholder clamp

    Downholder clamp - Locks any material which is not lying planend and improves the alignment against the backgauge

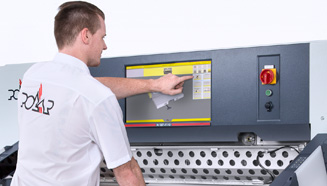

    Programmable clamping pressure adjustment

    Programmable clamping pressure adjustment - Correct clamping pressure can be programmed in addition to the cut size. > longer knife service life

    Automatic pressure regulation

    Automatic clamping pressure adjustment - Integrated sensors in the table ensure optimum clamping > higher cutting precision, longer knife service life

  • Optimized cutting cycle

    Optimized cutting cycle - Efficiency is increased by up to 10% through cutting constant cutting sequences

    Infinitely variable knife speed of 100 - 50%

    Infinitely variable knife speed of 100 - 50% - To adjust the knife speed to different materials, such as plastic panels etc.

    OptiClamp

    OptiClamp - Optimizes the cutting of difficult materials, such as UV-varnished material

  • Separate air control for the front table

    Separate air control for the front table - Cut labels can be unloaded much easier and will not float off on the rear table

    Firmly mounted lift

    Firmly mounted lift - A lift attached to the frame > space saving alternative to the self-contained lift

    CutManager

    CutManager - Workflow-Integration allows to link up prepress and HD Postpress Manager for job and operating data

  • Waste container

    Waste container

    HSS knife

    HSS knife

    Carbide-tipped knife (premium)

    Carbide-tipped knife (premium)

  • Guillo-Crease – Unique creasing system

    Guillo-Crease - Unique creasing system that transforms your cutter quickly and easily into a creasing machine
