High-speed cutter POLAR N 78 HD PRO

High-speed cutter POLAR N 78

Already in the 11th generation - the classic entry-level model

The 11th generation of POLAR high-speed cutters begins with POLAR N 78. It is distinguished by its future-orientated platform for simple network integration and well-proven technology with a new design.

High-speed cutter N 78 ECO:

The programmable economy model for industrial use with 5.5'' monochrome display

High-speed cutter N 78 PLUS:

The allrounder with 18.5“ color display and touch-screen operation. Suitable for all standard cutting jobs. Featuring automatic graphic programming to ensure a highly-automated process.

High-speed cutter N 78 PRO HD:

The programmable high performance model with a capacitive 21.5'' Touch-Screen display and real image preview for highend applications thanks to job specific programmable parameter, label and distortion correction as well as an extended range of options.

Configure your POLAR N 78 high-speed cutter with performance-enhancing options tailored to your own requirements.

High-speed cutter POLAR N 78
Cutting width 780 mm
Feed depth 780 mm
Clamp opening max. 120 mm
Depth of front table 690 mm
Dimensions width x depth D 2020 mm  x  W 1580 mm
Component for ..... Half-size (SRA3 up to 52 x 74 cm)

Configuring with

10 Options to

  • Compucut®

    Compucut® - Transfer of prepress data to generate cutting programs externally > reduces set-up time to almost zero


    Barcode - Enables automatic loading of the appropriate cutting program

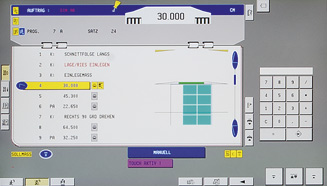

    Process Visualization

    Process Visualization - Minimum proneness to errors through graphics that visually represent material handling.

  • AntiStickKnife

    AntiStickKnife - Special coating that prevents the adhesion of glues. > This increases the productivity by up to 30%.

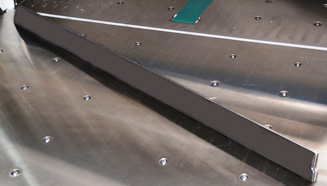

    False clamp plate

    False clamp plate, 40 mm (cutting width: 50 mm) - Smaller labels, such as business cards can be cut without any loss of quality


    CutManager - Workflow-Integration allows to link up prepress and HD Postpress Manager for job and operating data

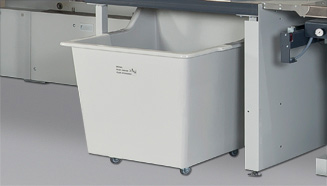

  • Waste container

    Waste container

    HSS knife

    HSS knife

    Carbide-tipped knife (premium)

    Carbide-tipped knife (premium)

  • Guillo-Crease – Unique creasing system

    Guillo-Crease - Unique creasing system that transforms your cutter quickly and easily into a creasing machine
