POLAR Pile Turner PW-1

Pile Turner PW-1

Fast and automatic turning of half-size format

The POLAR PW-1 pile turner is mainly employed for handling the half-size format and works at a high speed saving cost and power.

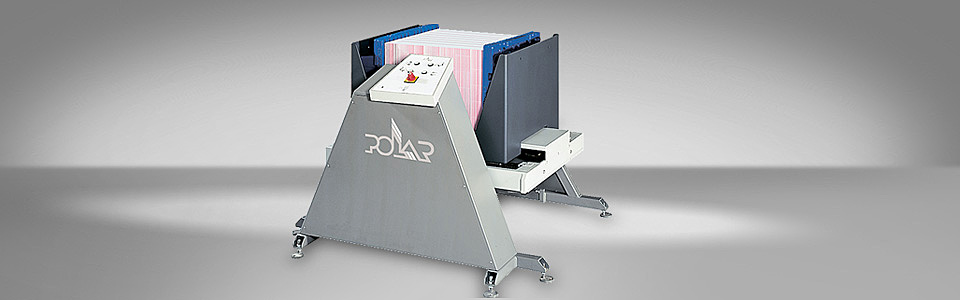

The POLAR Pile Turner PW-1 picks up the pile on one side of the machine, sandwiched between two platforms, rotates it on a horizontal axis and puts it down on the opposite side.

Customer benefits

  • There are no long waiting times caused by manual re-stacking
  • Saves the material and prevents damages
  • Improves ergonomic conditions, because the lifting of heavy loads is avoided

Pile Turning Half-size
SRA3 up to
52 x 74 cm
Medium-size
up to
75 x 105 cm
Large-size
up to
105 x 145 cm
POLAR Pile Turners PW-1
Dimensions, width 64 x 74 cm
Carrying capacity, max. 500 kg
Pile height, max.*) 125.5 cm
Pile height, min.*) 47cm
Component for the preparation of printed sheets
*) including the pallets

Configuring with

0 Options

Fully equipped product with no additional options

Fully equipped product with no additional options.
