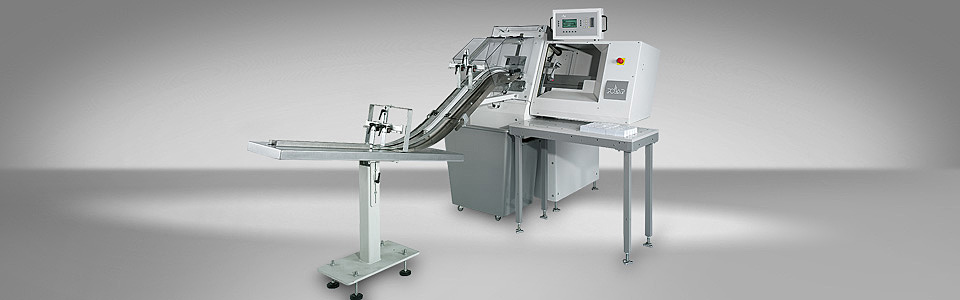

Stand-alone die-cutter POLAR DC-M and DCC-M
perfectly suited for semiautomatic off-line production of labels

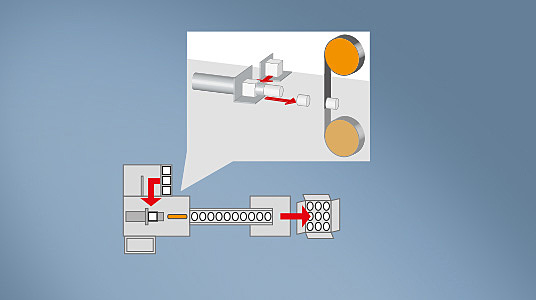

Stand-alone die-cutter POLAR DC-M works fully automatically according to the puncture principle. It is suited for any common label paper. Stand-alone die-cutter POLAR DCC-M is of identical construction, but works with counter pressure. Therefore it is perfect for special materials, such as plastics, metal foils and large-size labels.
Both versions of POLAR die-cutters are perfectly suited for semiautomatic off-line production of labels. Small or medium-size products are especially cost-efficient to produce on POLAR stand-alone die-cutters.
Easy setup, fast tool change and zero die-cutting make the POLAR DC-M and DCC-M solo die-cutters very profitable also in digital printing, wherever individual label designs are concerned.
| POLAR Die-Cutter, type ... | DC-M Solo Die-Cutter | DCC-M Solo Die-Cutter |
| Label size, max. | 170 x 210 mm | 170 x 250 mm |
| Label size, min.: | 20 x 40 mm | 50 x 50 mm |
| Die-cut size, max. | 166 x 206 mm | 166 x 246 mm |
| Die-cut size, min. | 16 x 36 mm | 46 x 46 mm |
| Clamp opening, max. | 125 mm | 120 mm *) |
| Clamp opening, min. | 35 mm | 35 mm |
| Component for ..... | LabelSystems or Solo die-cutters |
LabelSystem DCC-11 Solo-die-cutters |
| *) clamp opening = die-cutting tool minus 5 mm | ||
