Die-cutting

System die-cutter POLAR DC

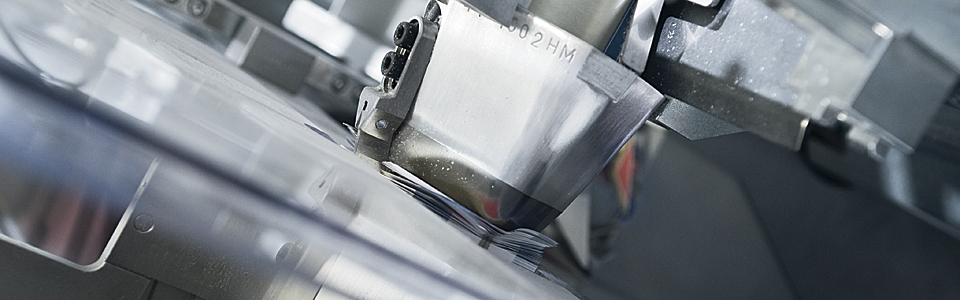

Automatic in-line die-cutting uses the puncture principle

The POLAR DC system die-cutter is the center of a complete POLAR Label System.

Integrated between the automatic cutting machine AC 25 and the BD single-head bander this die-cutter can make products which are freely definable in their design and not restricted to right angles.

The system die cutter POLAR DC uses the puncture principle and is suitable for all common label papers.

  • OnePunchRegister allows to position the cutting die in line with the printed image with just one pack
  • Ultimate die-cutting precision by securing the die-cut material on all four sides
  • Optimum performance with minimum staff
  • Easy set-up of the die with alternate-frame system outside the machine
  • Short make-ready time by motorized precision adjustment of the cutting die within the machine

POLAR Die-Cutter, type ... System die-cutter DC
Label size, max. 170 x 210 mm
Label size, min.: 20 x 40 mm
Die-cut size, max. 166 x 206 mm
Die-cut size, min. 16 x 36 mm
Clamp opening, max. 125 mm
Clamp opening, min. 35 mm
Component for ..... LabelSystems or
Solo die-cutters

Configuring with

4 Options to

  • Cardboard remover

    Cardboard remover - Once the label stack has been fed into the die-cutting space, the support cardboard is removed. Required for log banding.

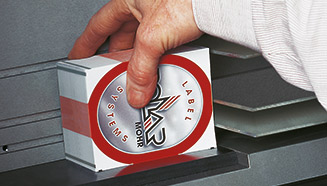

    Manual feeding

    Manual feeding - Allows manual feeding of the die-cutter which has many advantages, especially with small quantities.

    Conveyor belt delivery unit

    Conveyor belt delivery unit - The banded label stack is not transferred to the delivery via chute, but on a conveyor belt.

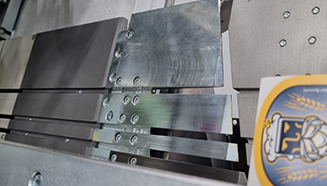

  • Universal alternate frame

    Universal alternate frame - takes all types of cutting dies
